RPS Power Supply Series™ Model RPS5412

RPS Power Supply Series™ Model RPS5412

Optimal Power® rack mount product line RPS Power Supply Series™ is specifically designed by Optimal Power Supplies LLC for NETGEAR®, as the ONLY tested and certified solution for alternative power source for NETGEAR® RPS (Redundant Power Supply) capable switches.

Product Description

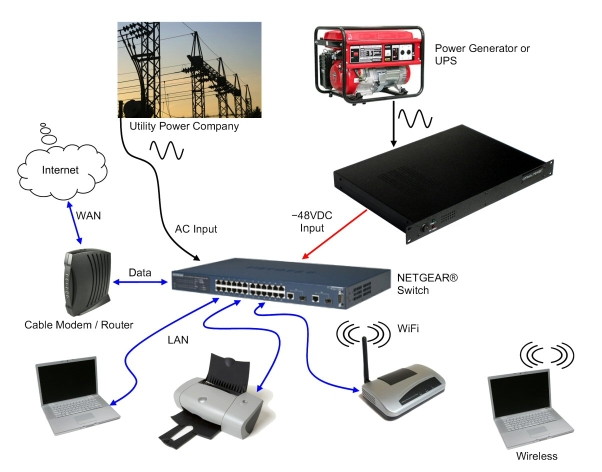

RPS Power Supply Series™ is a unique and a highly reliable power supply series. It is used as a redundant power supply for NETGEAR® RPS capable PoE, 10/100 Ethernet, and Gigabit Ethernet switches. The RPS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

The RPS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

The Model RPS5412 is a 1U rack mountable RPS (Redundant power supply). The RPS has an ON/OFF switch, and an associating DC power LED.

Specifications:

Electrical

Output Voltage -52V DC +12V DC
Output Ripple Typical 200mV Typical 120mV
Output Current Typical 5.77A max. Typical 9A max
Output Power* 300W 100W
Input Voltage Universal 90VAC to 264VAC input
Input Frequency 47Hz to 63Hz
Input Current 5 Ampere maximum

Typical Safety Rating

Designed in full compliance with UL60950
  CSA 222 No 234
  EN60950
EMI EN55022 "Class A"
EMS EN61000-4-2,-3,-4,-5,-6,-8,-11
Harmonics EN61000-3-2 Class D
UL file No. E257685

Environmental

Overload Protection Auto-recovery
Functional Temperature 0 to 70 °C
Storage Temperature -20 to 85 °C
Over voltage Type Latch off
Efficiency 80-90% Typical
RoHS YES
Dimensions 1U (1.75" H x 19" W x 12.12" D)
Weight Approx. 7.75 lb

Model Number Table

Supported
NETGEAR® Switch Model
Optimal Power
RPS Models
Optimal Power
DC Cable
Data Sheet Manual
GSM7212F RPS5412 RPSC5412 RPS5412 data sheet RPS5412 manual
GSM7212P RPS5412 RPSC5412
GSM7224P RPS5412 RPSC5412
GSM7224-200 RPS5412 RPSC5412
GSM7248-200 RPS5412 RPSC5412
GSM7228PS RPS5412* RPSC5412
GSM7252PS RPS5412* RPSC5412
GSM7328S-200 RPS5412 RPSC5412
GSM7352S-200 RPS5412 RPSC5412
GSM7328FS RPS5412 RPSC5412

* NOTE The Model RPS5412 only provides up to 300W for POE application. If POE devices connected to the switch system need more than 300W, then this device is not recommended.

Please contact us at sales@optimal-power.com  or 251-209-8088
for information on NETGEAR® RPS systems
