OPR600 Front End Rectifier

1U Rack Mount AC to DC Front End Rectifier

Product Description: Optimal Power™ 1U Rack Mount AC to DC Front End Rectifier is a unique and a highly reliable power supply system. Due to its rugged and solid metal design, it is perfectly suited for harsh environments of POE (Power over Ethernet), Industrial, Utility and Telecommunication markets.

The power supplies in the OPR Power Series™ are designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

  • Computer Peripherals and Networking
  • Telecommunications and Fiber optic Network
  • Voice, Data and Analog Communications
  • Universities and Educational Facilities
  • Instrumentation and Electronics
  • Utility and Power Industries
  • Data Acquisition
  • Medical
  • Military

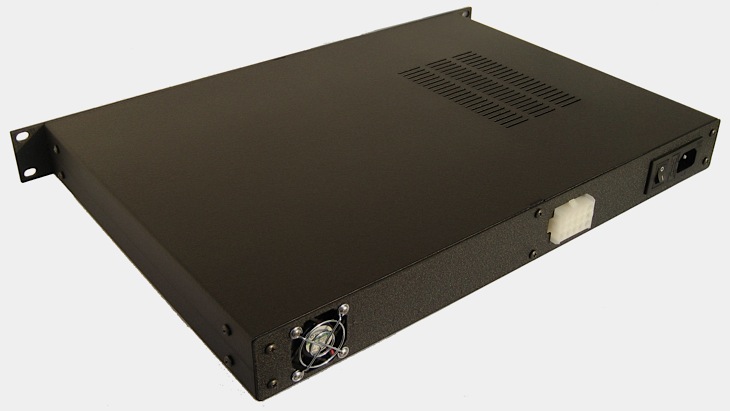

OPR600 Front End Rectifier

Click for large image

Power Supply Main Features:

  • Compact Rack Mount Size
  • Dimensions (1.75"H x 19"W x 12"D)
  • Universal AC (Alternate Current) Input
  • Filtered IEC AC Inlet Connectors
  • EMI FCC Class B Clearance
  • Single and Multiple Output
  • Highly Efficient Design
  • 1U Low Profile Height
  • NO Minimum Load Required
  • RS485/RS422 Remote Management
  • Low Voltage Power Supply Alarm
  • Data Line Alarm And ACO (Alarm Cut Off) System
  • Cost Effective and Reliable Power Supply

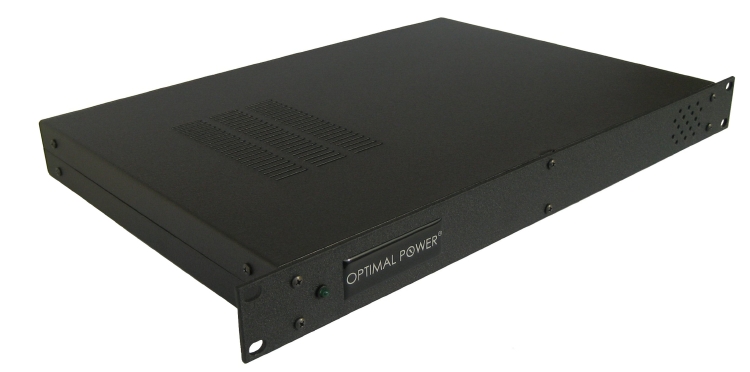

Single Power Supply


Click for large image

Power Supply Electrical Specifications:

Input Voltage Universal 85VAC to 264VAC
Input Frequency 47Hz to 63Hz
Input Protection AC line Fuse; 250 VAC, 10A
Input Current <6.5A @ 115 AC, <3.5A @ 230 AC @ full-load
Output Voltage (OPR600-48S) +48V DC (Positive 48 volt)
Output Voltage (OPR600-48SN) -48V DC (Negative 48 volt)
Output Ripple Typical 250mV
Output Current Typical 12A max.
Output Power Up to 600W continuous

Typical Safety Ratings for internal power module:

Designed in full compliance with IEC / EN / UL / CSA 60950-1
CE Declaration to Low Voltage Directive 2006/95/EC
EMS EN61000-4-5 Level 3, EN61000-4-2 Level 2
EN61000-3-2, EN61000-4-2 Level 3 (Air Only)
EN61000-4-4 Level 3, EN61000-4-11
Harmonics Distortion Meets IEC1000-3-2
EMI Filtering CISPR 11 and 22 FCC Part 15 Class B
MTBF MIL-STD-HDBK 217E , 200,000 hours @ 25°C,
ground benign, Highly Accelerated Life Testing

Power Supply Environmental Specifications:

Overload Protection Auto-recovery
Functional Temperature 0 to 70 °C, rated power to 50°C, derate linearly to 50% at 70°C
Storage Temperature -50 to 85°C/20-90% RH
Thermal Protection Auto off; auto reset upon cool down
Efficiency Up to 92% (MTBF: 200,000 hours @ 25°C)
RoHS YES (Green Power) RoHS Directive 2011/65/EU
Dimensions 1U (1.75” H x 19” W x 12.12” D)
Approximate Weight 11.55 lb = 5239 g = 184.80 oz

Available Models

Model Number Total Watt Output DC Voltage Output Current Unit Price Manual Buy Now
OPR600-48SN 600 -48V DC 12A $1499.00 buy now
OPR600-48S 600 +48V DC 12A $1499.00 buy now
