AC to DC Linear

OPL Series™ 2U Rack Mount AC to DC Linear Power Supplies

Product Description: OPL Power Series™ is a unique, low noise and a highly reliable power supply series. It can be configured as a single as well as a fully redundant power supply. OPL Power Series™ is designed for Universal AC to DC linear power supply applications. Linear power supplies have inherently low conducted and radiated noise levels, because of this feature these power supplies can be used anywhere in the world where power supply noise is an issue. These power supplies are mainly used in the following applications:

  • Noise sensitive aviation circuitry & sensors
  • Medical & hospital applications
  • Instrumentation and Electronics
  • Microprocessor circuitry
  • Analog Data Acquisition
  • CNC machinery
  • Military

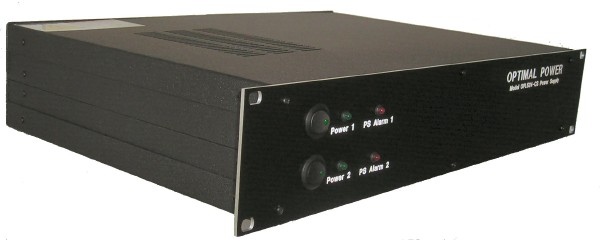

Linear Power Supply




Click for large image

OPL Power Series is a reliable, efficient and inexpensive solution for all kind of linear AC to DC power supply applications.

Power Supply Main Features:

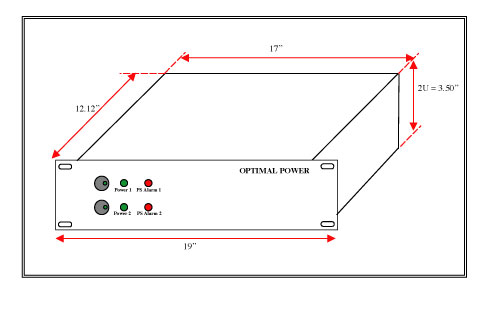

  • Compact Rack Mount Size (3.5"H x 19"W x 12"D)
  • Universal AC (Alternate Current) Input
  • Filtered IEC AC Inlet Connectors
  • EMI FCC Class B Clearance
  • Single and Multiple Output
  • Highly Efficient Design
  • 2U Low Profile Height
  • Fast transient response
  • Ideal for test applications
  • RS485/RS422 Remote Management
  • Low Voltage Power Supply Alarm
  • Low ripple noise, extremely quiet DC output
  • Short circuit and overload protection
  • Cost Effective and Reliable Power Supply Solution

Power Supply General Specifications:

Input Voltage 110VAC to 120VAC (or) 220VAC to 230VAC
Input Frequency 47Hz to 63Hz
Operational Temperature 0°C to 55°C
Storage Temperature -25°C to 85°C
Cooling Forced Air
Overload & Short Circuit Protection Auto-Recovery
Efficiency 80-90% Typical
DC OK TTL Logic or RS485/RS422 Interface or Status LEDs
Output DC Voltage Model Number Table
Output Power Model Number Table

Typical Internal Power Supply Brick Safety Specifications:

Designed in full compliance with FCC Class B and VDE 0871 for class B
EMI EN55022 "Class B"
EMS EN61000-4-2,-3,-4,-5,-6,-8,-11

Pricing:

For the prices of OPL Power Series™ Click here
