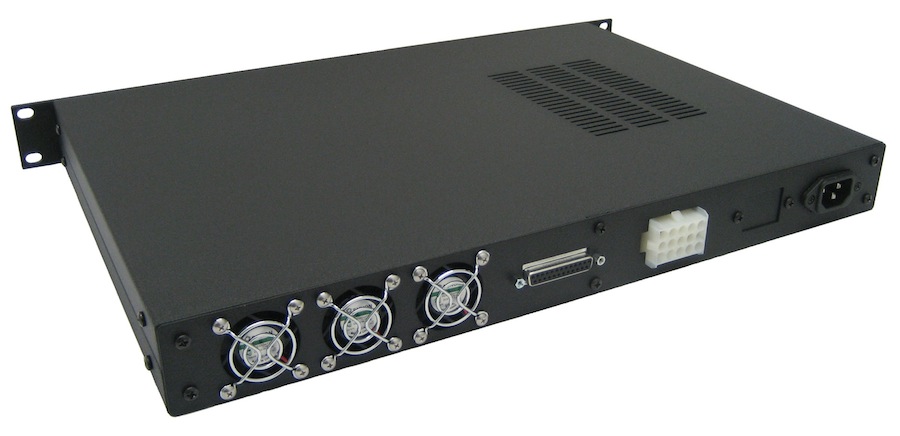

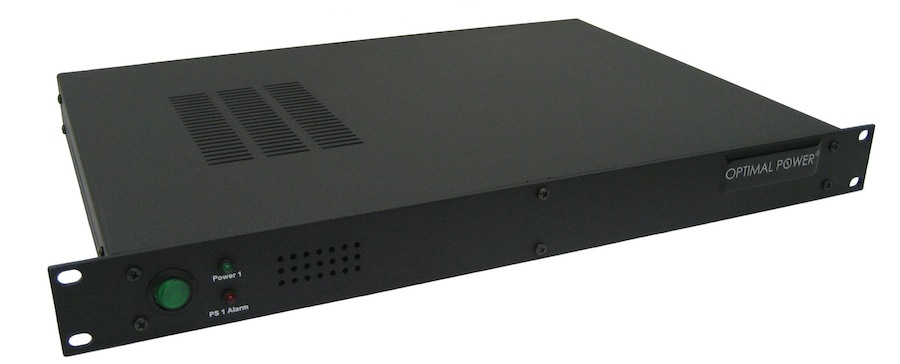

Universal AC to -24VDC Power Supply
Universal AC to -24VDC Power Supply
The 24V power supplies in the OPR Power Series are designed for negative 24 volt applications. These power supplies are considered for systems, where universal 90VAC to 264VAC is available and a negative 24V regulated output is required. The OPR Power Series model numbers that fall into this category are:
| Model Number | Redundant | Total Watt | Output DC Voltage | Load Amp. Typical | Unit Price | Manual | Buy Now |
| OPR300-24SN | No | 300 | -24V | 12A | $649.00 |  | buy now |
| OPR300-24RN | Yes | 600* | -24V | 12A + 12A | $1249.00 | | buy now |
Power Supply Main Features:
|
 Click for large image |
Power Supply General Specifications:
| Input Voltage | Universal 90VAC to 264VAC |
| Input Frequency | 47Hz to 63Hz |
| Operational Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 85°C |
| Cooling | Forced Air / Convection cooling |
| Overload Protection | Auto-Recovery |
| Efficiency | 80-90% Typical |
| DC OK | Relay contact closure interface or Status LEDs |
| Output DC Voltage | -24V |
Typical Internal Power Supply Brick Safety Specifications:
| Designed in full compliance with | UL60950 |
| CSA 22.2 No. 234 | |
| EN60950 | |
| EMI | EN55022 "Class B" |
| EMS | EN61000-4-2,-3,-4,-5,-6,-8,-11 |
| Harmonics | EN61000-3-2 Class D |
Pricing:
For other Models and pricing Click here
